Raytron Technical Review RESEARCH ARTICLE WP-01-10

Advanced Testing: Bimetallic Conductor Characterization

Q: How to ensure accuracy of test results?

Methods to ensure accuracy: use calibrated equipment, follow standard test methods, perform repeat testing, establish test uncertainty assessment, regularly conduct inter-laboratory comparison. Testing personnel need professional training.

Gao-Lei Xu¹ *

¹RAYTRON Group Technology Research Center, China

^*Corresponding author

Received: 2025-12 Accepted: 2026-02 Published: 03/2026

DOI: 10.1234/raytron.2026.WP-01-10

Abstract

Advanced characterization and testing methods are essential for ensuring bimetallic conductor quality and performance. This whitepaper reviews state-of-the-art testing techniques including microscopy, spectroscopy, mechanical testing, and non-destructive evaluation methods for bimetallic conductors.

Key Findings

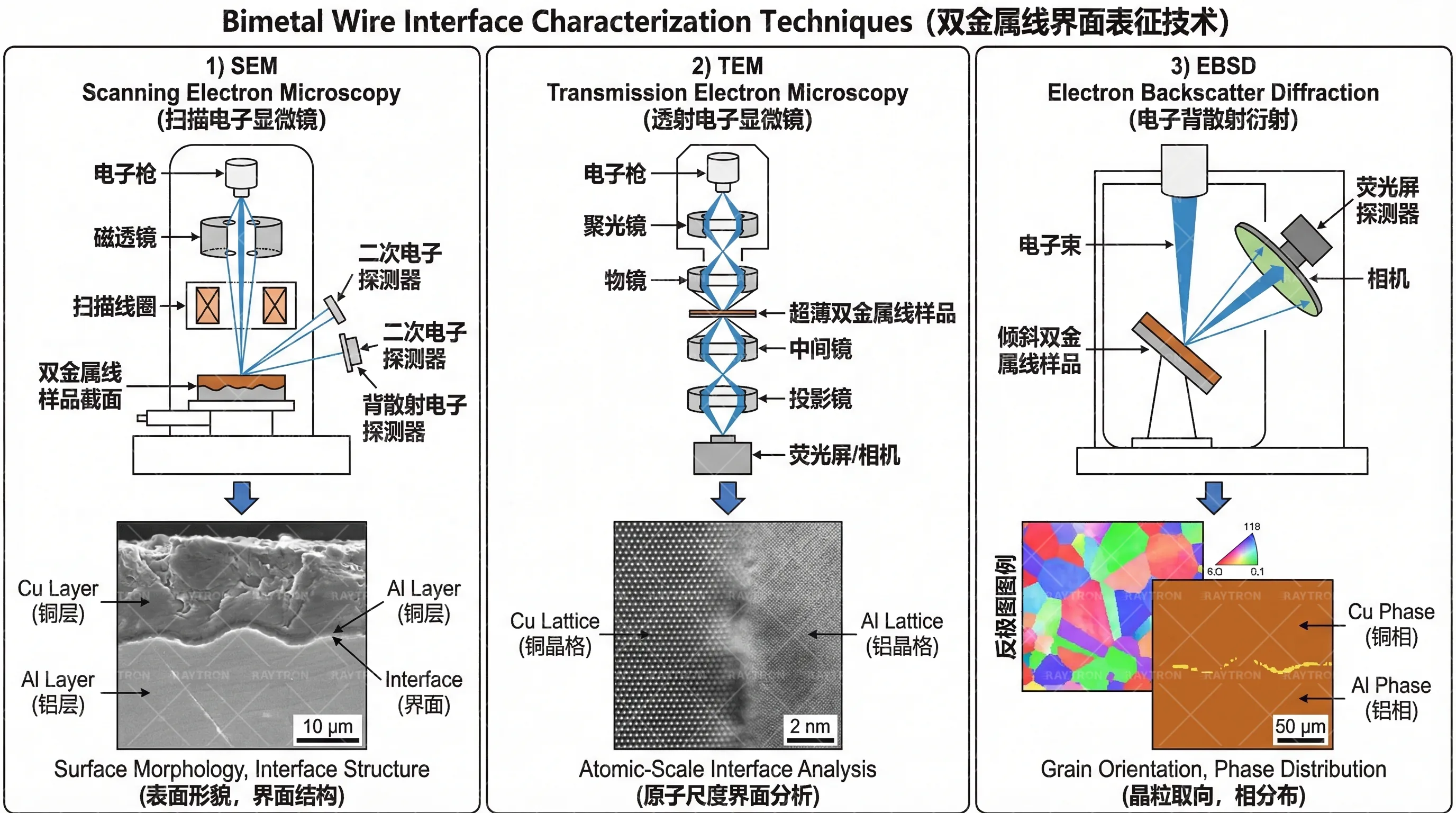

Microscopy Reveals Microstructure SEM can observe interface morphology and defects with resolution of 10nm; TEM can observe atomic structure and interface reaction layer with resolution of 0.1nm. Microscopy is a key tool for understanding bimetallic conductor properties.

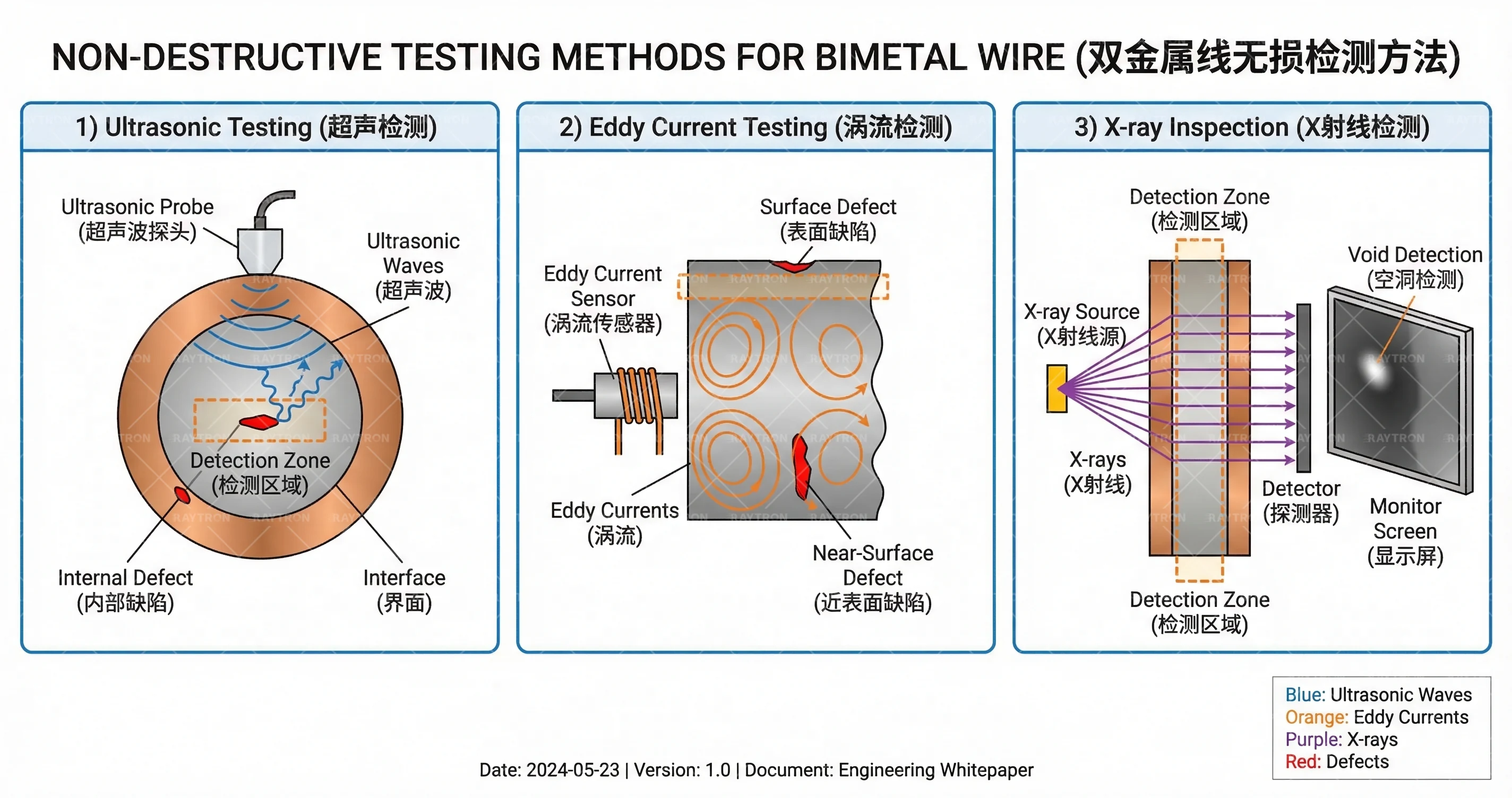

Non-destructive Testing Ensures Reliability Ultrasonic testing can detect interface delamination and porosity with detection capability >0.5mm; eddy current testing can measure conductivity and cladding thickness; X-ray testing can detect internal defects. Non-destructive testing achieves 100% inspection.
Mechanical Testing Verifies Performance Tensile testing measures tensile strength, yield strength, and elongation; peel testing measures interface bond strength; fatigue testing evaluates performance under cyclic loading. Mechanical testing ensures products meet application requirements.
Electrical Testing Ensures Function Four-point probe method measures resistivity and conductivity; contact resistance testing evaluates connection performance; temperature coefficient testing evaluates temperature stability. Electrical testing is the most basic functional verification for bimetallic conductors.

Keywords

bimetallic testing;microscopy;spectroscopy;non-destructive testing;quality assurance;characterization

1. Introduction

2. Microscopy Analysis

**Fig. 1** SEM Interface Morphology Photo

3. Inspection

Ultrasonic Inspection Principles — **Fig. 2** Ultrasonic Inspection Principle Diagram

4. Mechanical Testing

5. Testing

6. Conclusion

Frequently Asked Questions

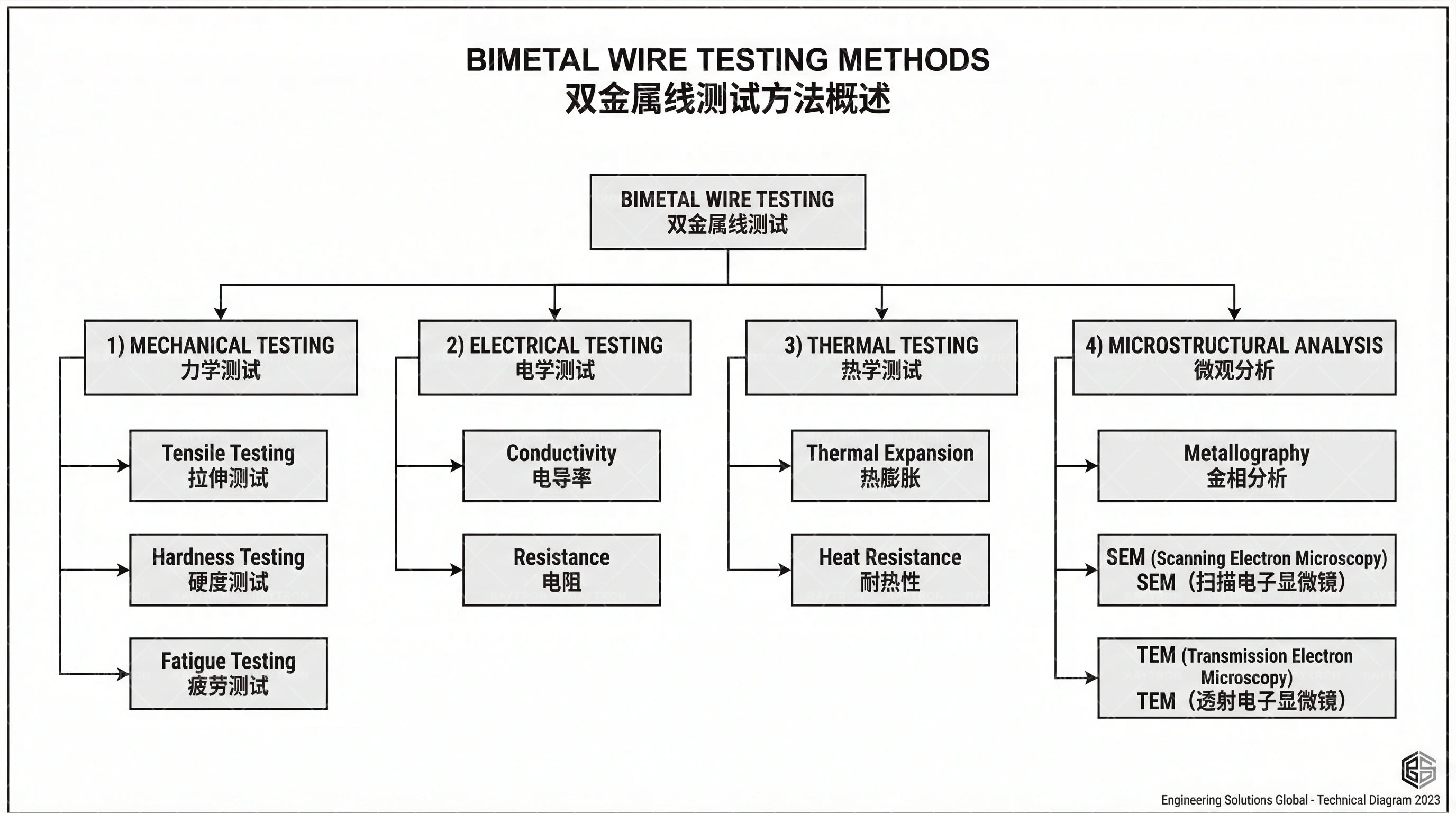

How to choose appropriate characterization method?

Choose based on information needed: SEM for interface morphology, TEM for atomic structure, EDS for composition distribution, peel testing for bond strength, four-point probe for conductivity. Combining multiple methods provides comprehensive characterization.

What are the limitations of non-destructive testing?

Ultrasonic testing has difficulty detecting small defects (<0.5mm); eddy current testing is affected by material magnetism and surface condition; X-ray testing has low sensitivity for thin sections. Non-destructive testing needs to be combined with destructive testing.

How to ensure accuracy of test results?

Methods to ensure accuracy: use calibrated equipment, follow standard test methods, perform repeat testing, establish test uncertainty assessment, regularly conduct inter-laboratory comparison. Testing personnel need professional training.

Figures

SEMInterface MorphologyPhoto

Fig. 1 SEMInterface MorphologyPhoto

Ultrasonic Testing Principle Diagram

Fig. 2 Ultrasonic Testing Principle Diagram

Create Tensile Test Curve

Fig. 3 Tensile Test Curve

Tables

Table 1 Microscopy Techniques Comparison

Technique	Resolution	Info Type
OM	0.5 μm	Morphology
SEM	10 nm	Morphology + Composition
TEM	0.1 nm	Atomic Structure

Table 2 Non-Destructive Testing Methods

Method	Detection Capability	Applicability
Ultrasonic	Delamination, Voids	All
Eddy Current	Conductivity, Thickness	Conductive Materials
X-Ray	Internal Defects	Thick Cross-Section

References

ASM International Materials Characterization Handbook ASM (2020)
