Quality Control: Ensuring Bimetallic Conductor Reliability

Q: What are the main quality defects of bimetallic conductors?

Main defects include: interface delamination (poor bonding), cladding eccentricity (uneven thickness), surface cracking (excessive work hardening), dimensional out-of-tolerance (die wear), insufficient conductivity (raw material issues). These defects can be avoided through strict process control and inspection.

Q: How to establish an effective quality control system?

Establishing quality control system requires: 1) Define quality standards and testing methods; 2) Establish raw material inspection procedures; 3) Implement process monitoring and SPC; 4) Establish finished product inspection specifications; 5) Establish traceability and corrective action systems; 6) Continuous training and improvement.

Q: How is SPC applied in bimetallic conductor production?

SPC is applied to monitor key parameters: conductivity, tensile strength, dimensions, etc. Use X-bar R charts to monitor process mean and variation, set control limits and specification limits. When data points exceed control limits, analyze causes and take corrective actions.

Gao-Lei Xu¹ *

¹RAYTRON Group Technology Research Center, China

^*Corresponding author

Received: 2025-12 Accepted: 2026-02 Published: 03/2026

DOI: 10.1234/raytron.2026.WP-01-09

Abstract

Quality control is essential for ensuring bimetallic conductor reliability and performance. This whitepaper examines quality management systems, testing protocols, statistical process control, and certification requirements for CCA, CCS, and NCC manufacturing.

Key Findings

Key Quality Indicators Defined Key quality indicators for bimetallic conductors include: conductivity (CCA≥62% IACS), tensile strength (≥150MPa), elongation (≥15%), interface bond strength (>40MPa). These indicators need regular testing and SPC control.
Statistical Process Control is Effective SPC monitors variation of key parameters through control charts, detecting abnormal trends in time. Key parameters include dimensions, conductivity, tensile strength, etc. Cpk>1.33 indicates adequate process capability, Cpk<1.0 requires improvement.
Non-destructive Testing Ensures Quality Ultrasonic testing can detect interface delamination and porosity, eddy current testing can measure conductivity and cladding thickness. Non-destructive testing achieves 100% inspection, preventing defective products from entering the market.
Quality System Needs Continuous Improvement Establish comprehensive quality management system, including raw material inspection, process control, finished product testing, and customer feedback. Continuous improvement through PDCA cycle reduces defect rate and improves customer satisfaction.

Keywords

quality control;bimetallic conductor;testing protocol;SPC;certification

1. Introduction

2. Quality

3. Inspection

4. Process Control

5. Conclusion

Frequently Asked Questions

What are the main quality defects of bimetallic conductors?

Main defects include: interface delamination (poor bonding), cladding eccentricity (uneven thickness), surface cracking (excessive work hardening), dimensional out-of-tolerance (die wear), insufficient conductivity (raw material issues). These defects can be avoided through strict process control and inspection.

How to establish an effective quality control system?

Establishing quality control system requires: 1) Define quality standards and testing methods; 2) Establish raw material inspection procedures; 3) Implement process monitoring and SPC; 4) Establish finished product inspection specifications; 5) Establish traceability and corrective action systems; 6) Continuous training and improvement.

How is SPC applied in bimetallic conductor production?

SPC is applied to monitor key parameters: conductivity, tensile strength, dimensions, etc. Use X-bar R charts to monitor process mean and variation, set control limits and specification limits. When data points exceed control limits, analyze causes and take corrective actions.

Figures

Create Quality ControlFlowchart

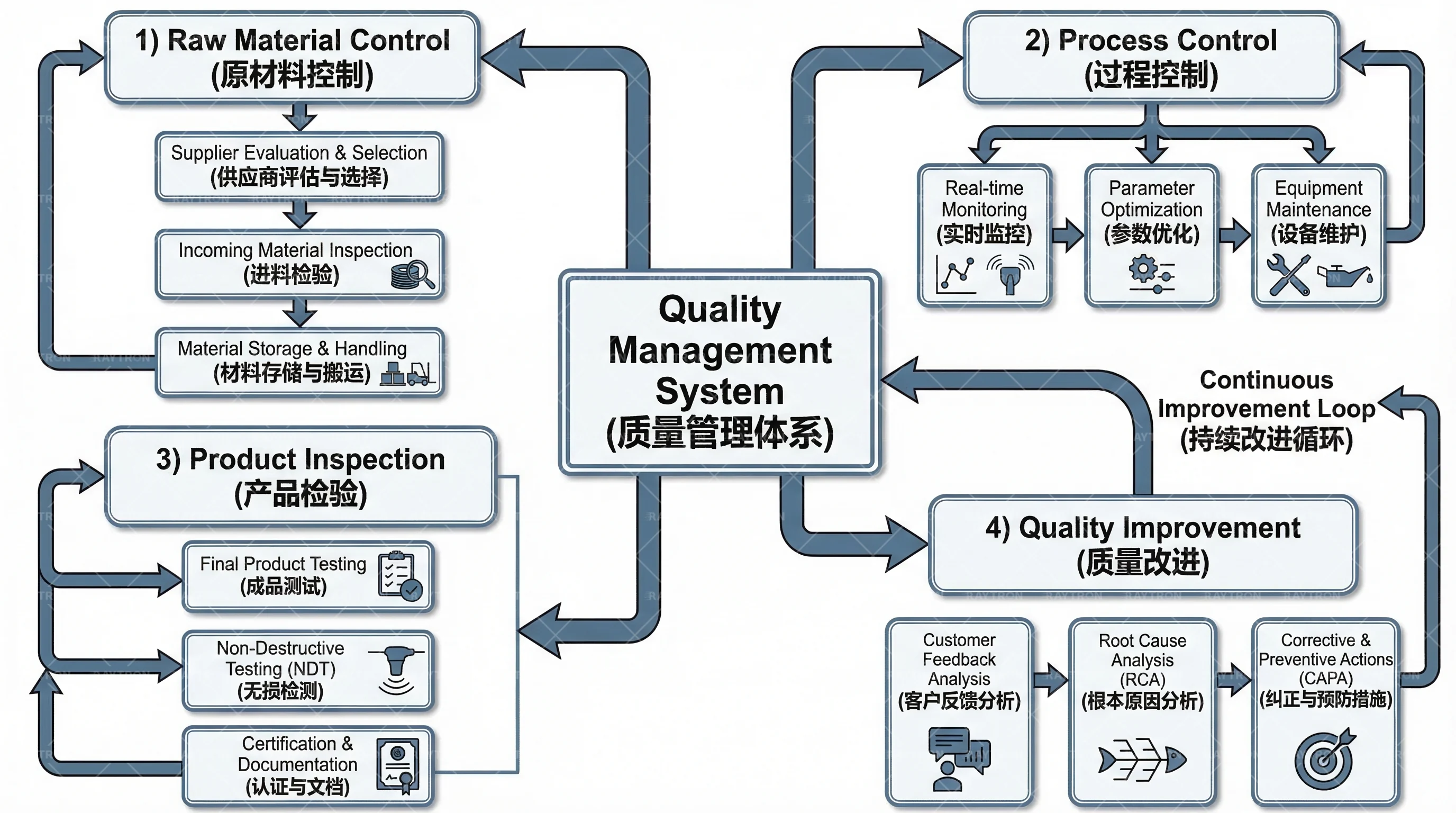

Fig. 1 Quality ControlFlowchart
