13
Precision Rolling Lines
Rolling, slitting and dimensional control
Composite PV Ribbon & Precision Clad Conductors
Raytron manufactures composite PV ribbon and precision clad conductors, including CCA, CCS and NCC materials for solar, cable, EV, motor and energy applications.
15,000
Tons Annual Capacity
Supports samples, pilot lots and ongoing supply
28
Patents
Clad conductor, rolling and related processes
200 kg
MOQ
Suitable for engineering samples and trial orders
24h
RFQ Reply Within
Initial acknowledgement within 24 business hours.
ISO9001
Certified
Quality system and lot traceability support
Quick Selector
Answer a few questions, find the right product
Stage 1 captures your application fit, stage 2 adds engineering details to size risk and validation. Results are indicative — an engineer confirms the final spec.
Stage 1 · Application fit
Product Series
Composite PV Ribbon and Clad Conductor Product Series
These product series follow material system and product form: current focus on copper-aluminum composite PV ribbon and busbar ribbon, plus CCA, CCS and NCC clad conductor engineering entry points.
Core Product Families
Products supported by Raytron’s primary manufacturing and engineering capabilities.
Core Business · In Production
Copper-Aluminum Composite PV Ribbon & Busbar
Copper-aluminum composite main ribbon, busbar ribbon and round solar ribbon for copper saving, cost reduction and lightweight solar modules.
Copper Saving · Lightweight · Skin Effect

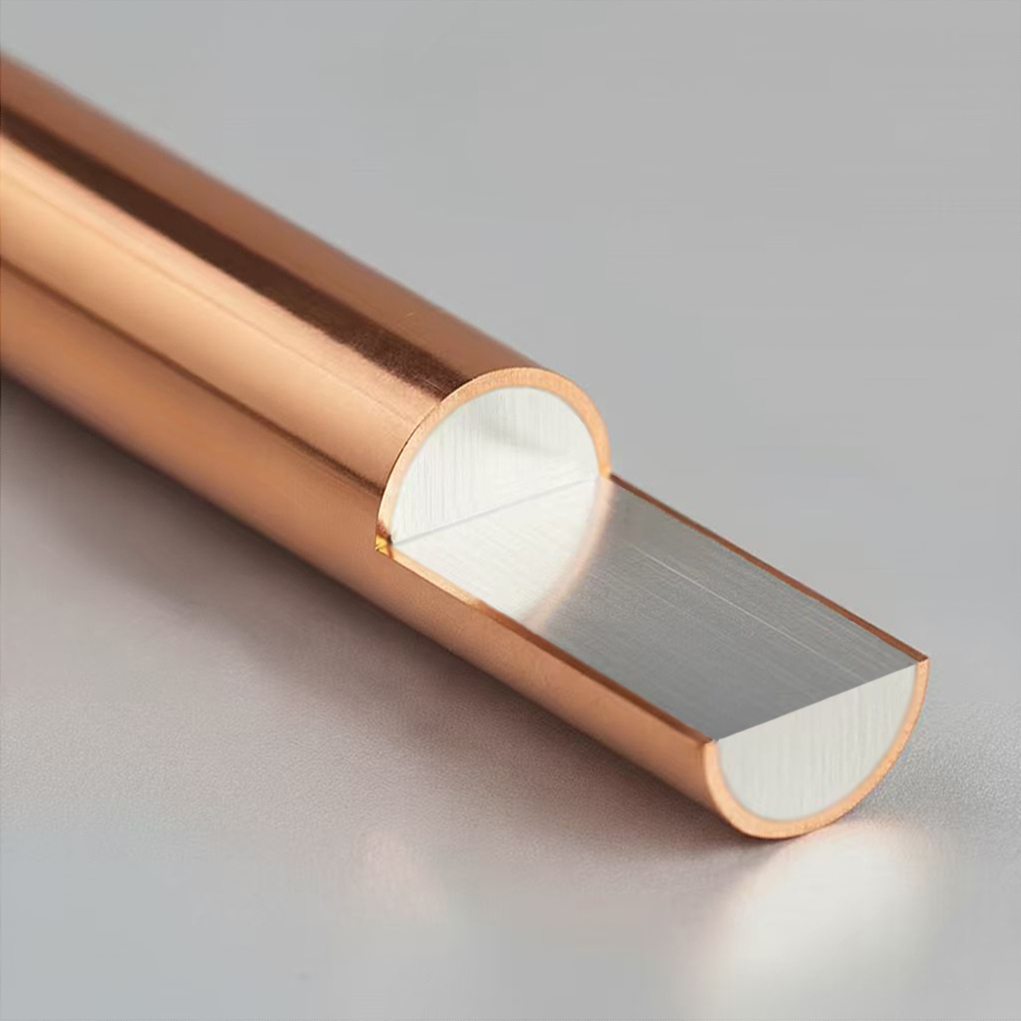

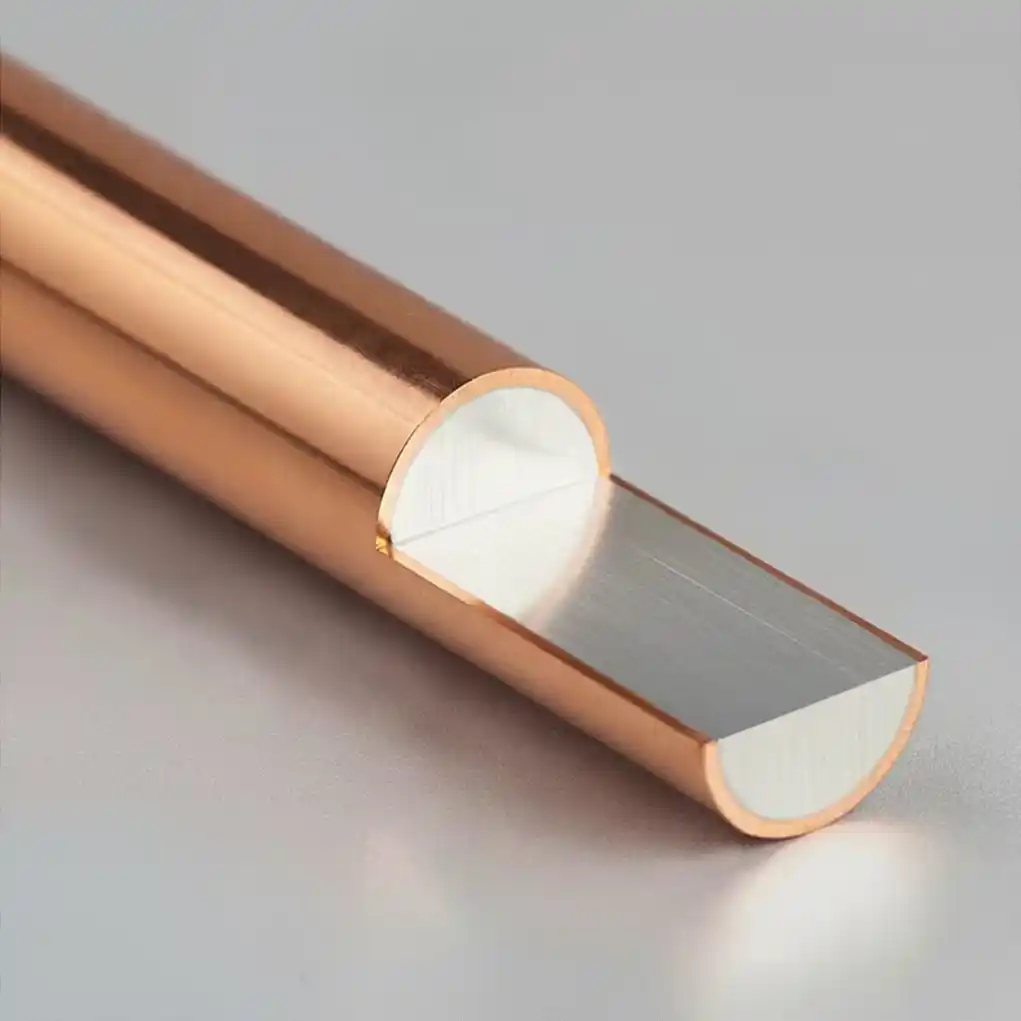

Copper Clad Aluminum Conductors
CCA round wire, CCA flat wire and CCA foil for PV ribbon, cables, voice coils, inverter magnetics and medium-small power windings.
High Strength · Grounding · Signal Conductors
Copper Clad Steel Conductors
CCS round wire, CCS stranded wire and CCS narrow foil for grounding, lightning protection, coaxial cable, electronic leads, connectors and railway applications.
Corrosion Resistance · Contact Conductors
Nickel Clad Copper Conductors
NCC round wire, strip and foil for battery tabs, high-temperature sensors, corrosion-resistant connections and selected high-reliability contact applications.
Supporting Materials
Materials that support customer engineering and supply chain needs.
Supporting Materials
Supporting Copper, Aluminum and Nickel Materials
Copper strip, copper foil, aluminum strip, aluminum foil, nickel strip and battery connection materials support specific application needs without replacing Raytron’s core positioning.
Engineering Inquiry Products
Available for specific application validation or custom projects.
Engineering Review · Custom Projects
Silver Clad Copper, Silver and Specialty Metals
Silver clad copper, silver, specialty metals and custom materials are handled as engineering inquiries requiring application, electrical, surface, MOQ and sample validation review.
From Product Architecture to RFQ
Help Engineers and Buyers Move to the Next Step
After reviewing product families, users need to confirm material boundaries, compare alternatives, prepare RFQ fields and find related product entities. These paths connect those jobs into one clear flow.
Product & Technology Relationships
Product & Technology Map
A structured map for composite PV ribbon, CCA, CCS, NCC and supporting rolled materials, helping engineering and buyer teams understand Raytron’s capability boundaries.
View MapSelection / Risk Review
Engineering FAQ Clusters
Answers product definition, specification, application-limit, inspection-document and supplier-audit questions before RFQ submission.
Review FAQsRFQ / Procurement Prep
Buyer Kits
RFQ checklists for drawings, specifications, tolerances, applications, packaging and requested test documents so quotation quality improves faster.
Open Buyer KitsDecision / Substitution Review
Material Comparison Guides
Decision guides for CCA, CCS, NCC, composite PV ribbon and traditional material alternatives, including when substitution fits and when validation is required.
Compare Material RoutesFind by Application
Quickly find the right product solutions for your specific application scenarios
IM
Industrial Motors
CCA CCS NCC
IF
Infrastructure
CCS NCC
OG
Oil & Gas
NCC CCS
CC
Cable & Conductor
CCA CCS Cu
ES
Energy Storage
NCC Cu Al
PV
Photovoltaic Solar
Cu CCA
EV
Automotive/EV
CCA NCC Cu
MD
Medical Devices
NCC Cu
AD
Aerospace
NCC CCA Cu
EC
Electronics
CCA NCC Cu
PV
PV Ribbon Selection Guide
Select optimal PV ribbon specs for PERC, TOPCon, HJT, BC cell technologies. CCA alternatives available for 20-30% cost savings.
Why Choose Raytron?
Founded in 2012, 15,000 tons/year capacity, 13 precision rolling lines
RAYTRON New Energy (Zhejiang) Co., Ltd.: Raytron manufactures composite PV ribbon and precision clad conductors, including CCA, CCS and NCC materials for solar, cable, EV, motor and energy applications.
Our Clad & Weld solid-phase bonding process forms a metallurgical interface at the Cu-Al boundary. Bond integrity is verified per the product control plan through metallographic examination, peel or shear testing and resistance checks. Combined with precision rolling, annealing, slitting and surface treatment, we support PV, new energy, electrical connection, cable and high-end conductor applications.
Core Technical Advantages
- Conductivity: CCA products specify 62-70% IACS depending on copper cross-sectional area ratio and product form
- Lightweight: 58-63% weight reduction at equal dimensions compared to pure copper; system-level weight reduction depends on conductivity, conductor size, insulation, termination and application design
- Cost Indication: Indicative material cost comparison depends on copper ratio, dimensions, volume and copper price; quotation is provided after specification review
- Customization: Round wire, flat wire, strip, foil and stranded forms can be reviewed against application requirements
Our products are used in photovoltaic solar, electric vehicles, energy storage systems, communication cables and high-end conductor applications. Supplier qualification status is confirmed per customer audit and application validation.
Quality Certifications & Compliance
Our products comply with international quality standards and environmental regulations
ISO 9001
Quality Management
RoHS
Environmental
REACH
EU Compliance
Product Comparison
Compare our solutions to find the best fit for your application
| Specification | Pure Copper (Reference) | Copper Clad Aluminum (CCA) | Copper Clad Steel (CCS) | Nickel Clad Copper (NCC) |
|---|---|---|---|---|
| Material | Copper (Cu) | Copper clad aluminum | Copper clad steel | Nickel clad copper |
| Typical Conductivity | 101% IACS | 62-70% IACS | 21-40% IACS | 70-85% IACS |
| Typical Density | 8.96 g/cm³ | 3.05-3.30 g/cm³ | 7.8-8.1 g/cm³ | 8.5-8.8 g/cm³ |
| Primary Advantage | Reference baseline | Lightweight · Cost reduction | High strength · Grounding | Corrosion resistance · High temp |
| Validation Requirement | — | Conductivity verification · Layer ratio metallographic examination | Conductivity verification · Tensile strength test | Conductivity verification · Nickel layer thickness measurement |
| Recommended Applications | General conductor reference | Building wire, Coaxial cable inner conductor, Transformer winding, Motor winding (with proper sizing), Automotive harness (validated applications) | Grounding conductor, Coaxial cable, CATV drop wire, Telephone drop wire, Structural conductor with strength requirement | Welding electrodes, Battery tabs, Heating elements, Sensor leads, High-temperature conductors |
| View Products | View Products | View Products | View Products |
Pure Copper (Reference)
Material Copper (Cu)
Typical Conductivity 101% IACS
Typical Density 8.96 g/cm³
Primary Advantage Reference baseline
Validation Requirement —
Recommended Applications General conductor reference
Copper Clad Aluminum (CCA)
Material Copper clad aluminum
Typical Conductivity 62-70% IACS
Typical Density 3.05-3.30 g/cm³
Primary Advantage Lightweight · Cost reduction
Validation Requirement Conductivity verification · Layer ratio metallographic examination
Recommended Applications Building wire, Coaxial cable inner conductor, Transformer winding, Motor winding (with proper sizing), Automotive harness (validated applications)
Copper Clad Steel (CCS)
Material Copper clad steel
Typical Conductivity 21-40% IACS
Typical Density 7.8-8.1 g/cm³
Primary Advantage High strength · Grounding
Validation Requirement Conductivity verification · Tensile strength test
Recommended Applications Grounding conductor, Coaxial cable, CATV drop wire, Telephone drop wire, Structural conductor with strength requirement
Nickel Clad Copper (NCC)
Material Nickel clad copper
Typical Conductivity 70-85% IACS
Typical Density 8.5-8.8 g/cm³
Primary Advantage Corrosion resistance · High temp
Validation Requirement Conductivity verification · Nickel layer thickness measurement
Recommended Applications Welding electrodes, Battery tabs, Heating elements, Sensor leads, High-temperature conductors
* Above data are typical values. Please consult our technical team for specific specifications.
Silver Clad Copper (SCC) is classified as an engineering inquiry product and is not listed in the standard comparison. Contact our technical team for details.
